PP PE Hard Material Crush Washing Recycling Line

Hard Material Washing Recycling Line

Regarding PP PE hard material washing recycling, one of the main application is surely blow molding application. As this became for the investors one of the most important final applications in terms of investment returns and of positive results. The most common applications of PE bottle are milk and food containers,detergent bottles. Body care as shampoo bottles and motor oil bottles. PE is also used for PET bottle caps. In this hard material section. Beier Machinery can process PP/PE recyclable products like PP/PE post consumered containers, pipes, other blow molding applications. Beier machinery PP PE hard material washing recycling machine is consisting in sorting prewashing, wet grinding, hot washing, separation, centrifugation and drying. Then it can be conveied to Beier Machinery pelletizing system for further recycling process.

Recyclable Materials

Milk Bottle

Daily Chemical Bottle

Plastic Bucket

Chemical Barrel

Plastic Recycling Monitor Center

BEIER Smart PLC Control System

Video of PP PE Hard Material Crush Washing Recycling Line

Technical Parameter

Capacity(kg/h)	Power Installed(kw)	Required Area(m²)	Main Power	Compressed Air(m³/min)	Water Supply(m³/h)
500	162	500	4	0.4	3
1000	250	800	4	0.4	4
2000	368	1000	4	0.4	4
3000	452	2100	6	0.4	6

1000 Customers References Videos

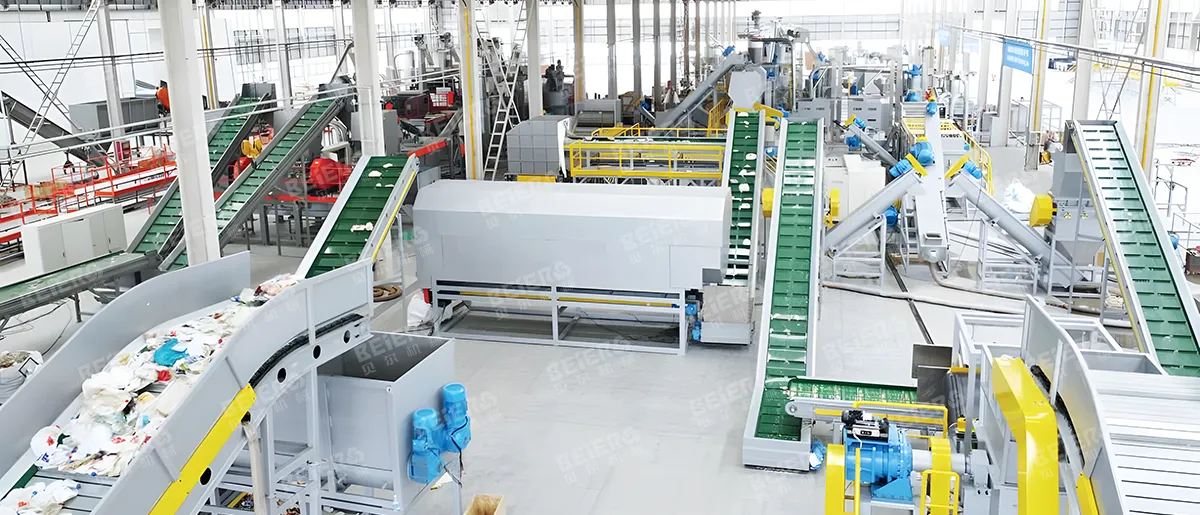

PP PE Hard Material Recycling Line Workshop

Components of PP PE Hard Material Recycling Line

Bale Opener

Horizontal and vertical type. Used for open PET bottle package, which can improve working efficiency, reduce cost of labor.
Pre-Washer

Pre-washing the whole bottle, removing the majority of impurity. Better for the accurate sorting in the next step.
Label Remover

Removing label of PET bottle with high efficiency, which can reduce the pollution from non-PET material.
Horizontal Centrifugal Dryer

Horizontal type, high speed: 2300rpm. Much more efficient than the traditional vertical type.
Grinder

Special design for PET, powder rate is low and the blade is made by imported materials, which have longer using life and more convenient for blade changing.
Hot Washer

Through input high temperature and high pressure steam, add chemical Medicament, like NAOH, cleaner and etc., efficiently remove glue and oil in the surface of PET flake.
Floating Washer

Washing PET bottle & Removing impurity in bottle cap, bottle ring, label and flake.
Vibrating Packing System

Vibrating packing system is a device for packing the flakes into the double-station ton bag units. With automatically vibrates down after a certain load bearing to increase the effective packing density of the ton bag.
