PET Bottle Recycling Crush Washing Line

Post-consumer PET bottles are doubtless among the most important components of the recycling market. Recycled PET may be used in a wide variety of final applications. With very interesting and remunerable financial returns for the recycling companies.BEIER Machienry, thanks to its worldwide experience in the field of PET bottle washing recycling line,can provide its customers with proper technical solutions and state-of-the art recycling technologies. Delivering a response tailored to the frequently changing needs of its customers and of the market.

PET Bottle Recycling Line Application

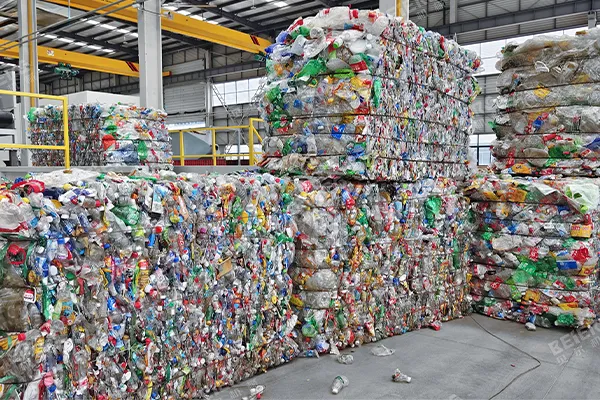

Waste PET bottle before

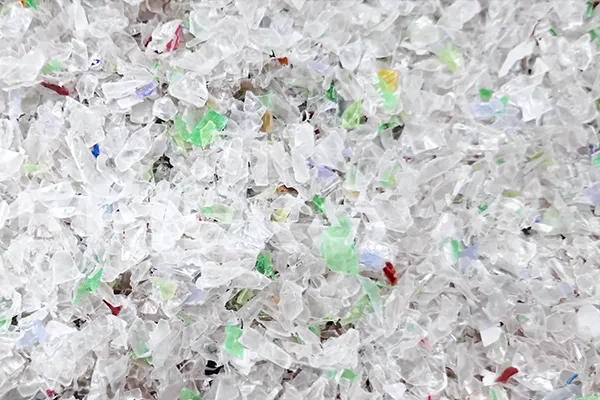

PET flakes after cleaning

Beier’s Food Grade Certificate from USA FDA NOL

Plastic Recycling Monitor Center

BEIER Smart PLC Control System

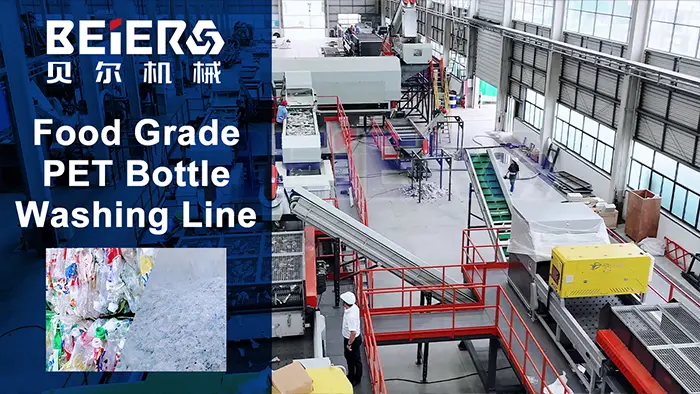

Video of PET Bottle Recycling Crush Washing Line

PET Recycling Line Technical Parameter

Capacity(kg/h)	Power Installed(kw)	Required Area(m²)	Manpower	Steam Volume(kg/h)	Compressed Air(m³/min)	Water Supply (m³/h)
500	220	400	8	350	4	1
1000	500	750	10	500	10	3
2000	700	1000	12	800	15	5
3000	900	1500	12	1000	15	6
4500	1000	2200	16	1300	18	8
6000	1200	2500	16	1800	18	10

PET Flake Quality Reference Table

Moisture Content	<0.9%	Lable	<20ppm
PVC	20-50ppm	Color PET	50ppm
Glue	<10ppm	PH	Neutral
PP/PE	<20ppm	Neutral	0.28-0.3g/cm³
Metal	<20ppm	Flake Size	8-14mm

1000 Customers References Videos

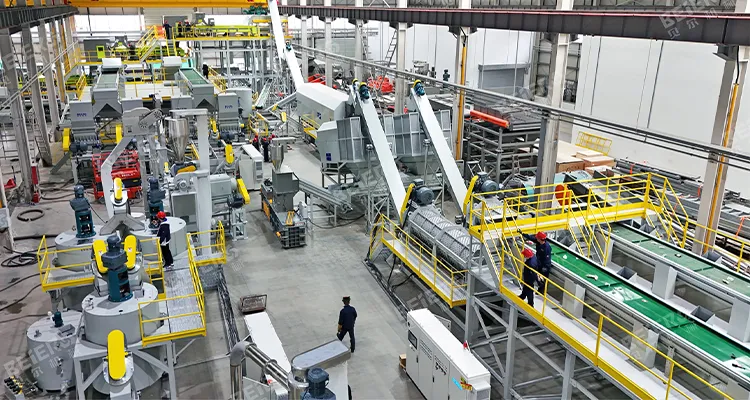

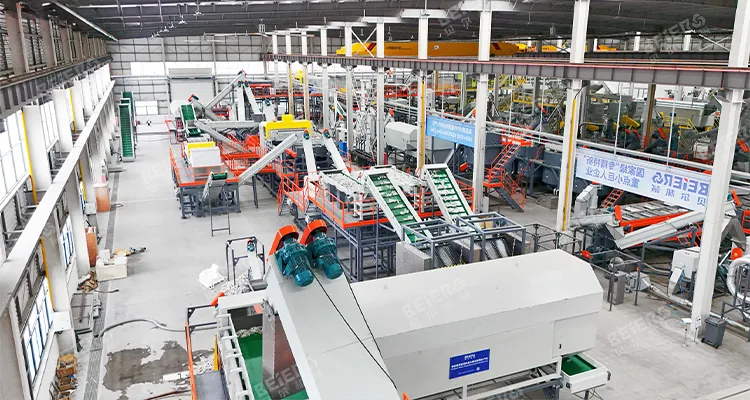

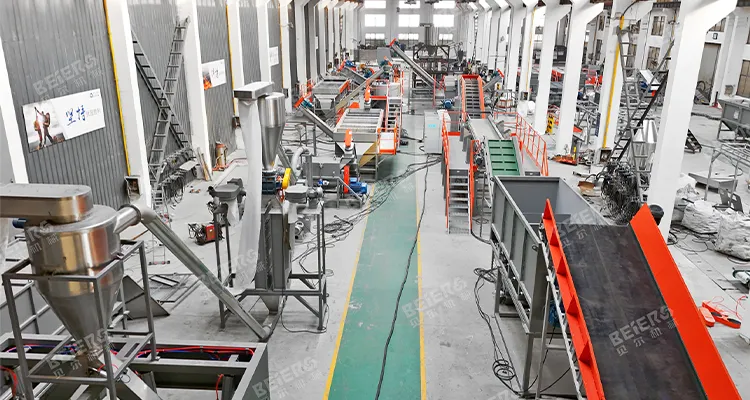

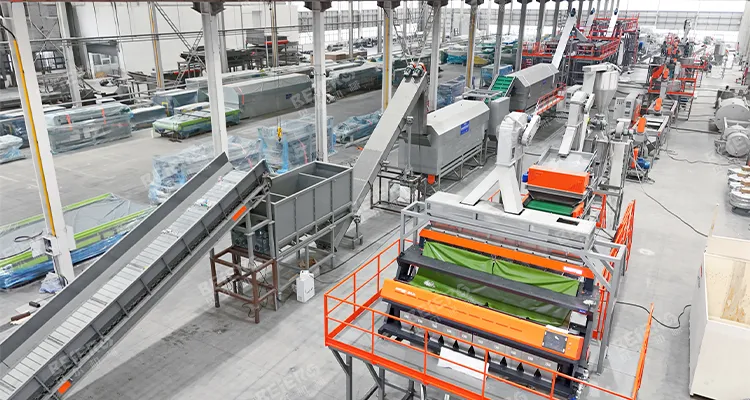

PET Bottle Recycling Line Workshop

Components Of PET Bottle Recycling Line

Bale Opener

Horizontal and vertical type. Used for open PET bottle package, which can improve working efficiency, reduce cost of labor.

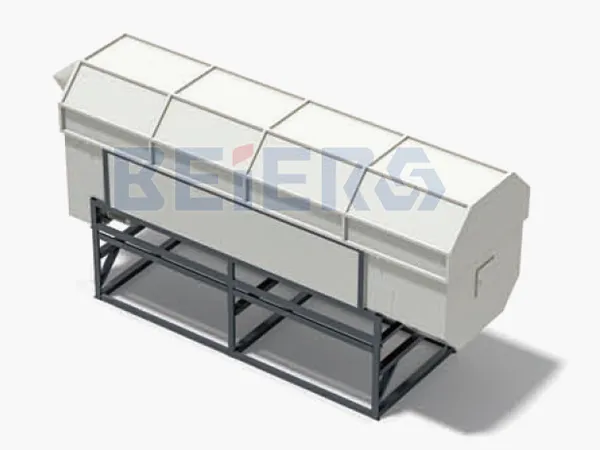

Pre-Washer

Pre-washing the whole bottle, removing the majority of impurity. Better for the accurate sorting in the next step.

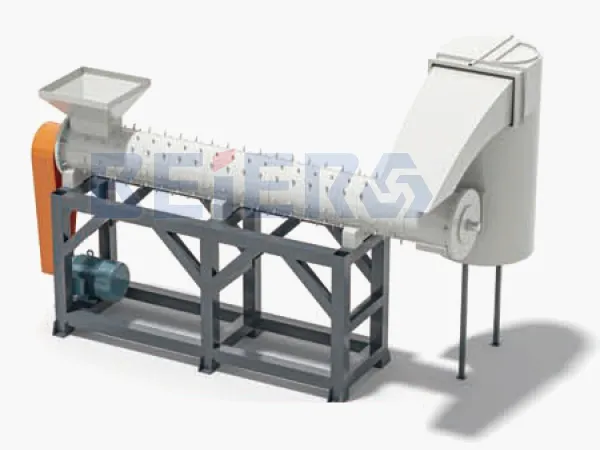

Label Remover

Removing label of PET bottle with high efficiency, which can reduce the pollution from non-PET material.

Grinder

For PET powder rate is low and the blade is made by imported materials, which have longer using life and more convenient for blade changing.

Centrifugal Dryer

Horizontal type, high speed: 2300rpm. Much more efficient than the traditional vertical type.

Floating Washer

Washing PET bottle & removing impurity in bottle cap, bottle ring, label and flake.

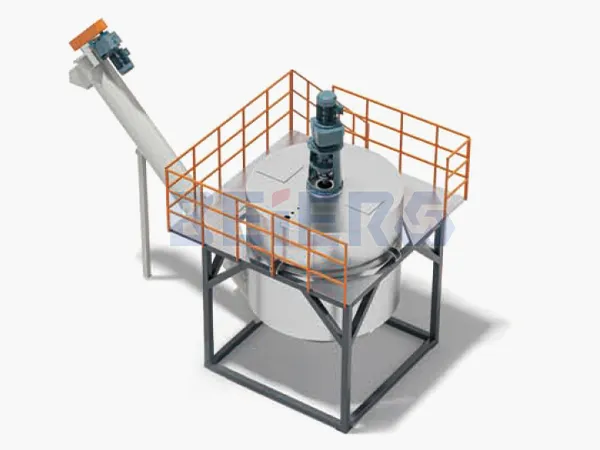

Hot Washer

Through input high temperature and high pressure steam, add chemical Medicament, like NAOH, cleaner and etc. , efficiently remove glue and oil in the surface of PET flake.

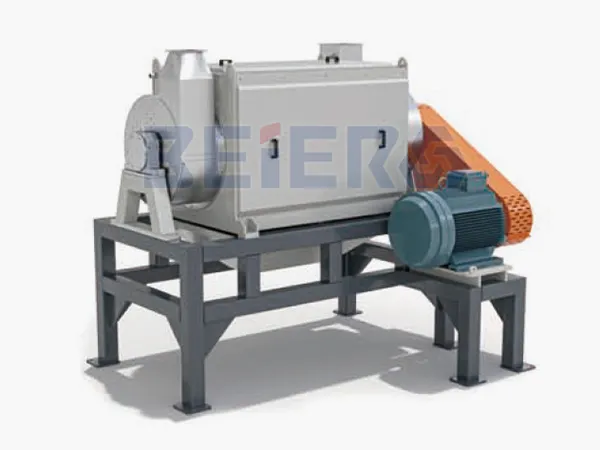

Spin Dryer

Spin dryer will throw the material with water to the screen fixed in the machine chassis through the centrifugal force formed by the high-speed rotating rotor to separate the material and water.

High Speed Friction Washer

By rotating at high speed, the bottle flakes and the screw rub against each other, which can separate the bottle flakes from dirt and labels to achieve the purpose of cleaning.

Flake Bucket Conveyor

Vertical flake bucket conveyor is lifting materials by a series of drawer fixed uniformly on the chain, advantage: small floor space, high lifting height, stable operation for conveying plastic granules, flakes.

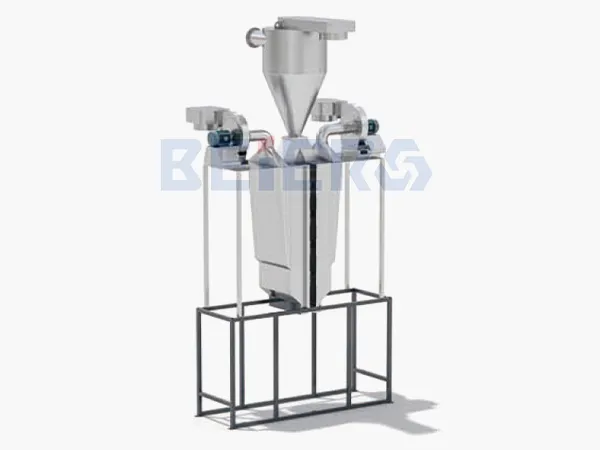

Zig Zag Separator

Special design for removing the remaining Label.

Vibrating Packing System

Vibrating packing system is a device for packing the flakes into the double-station ton bag units. With automatically vibrates down after a certain load bearing to increase the effective packing density of the ton bag.
