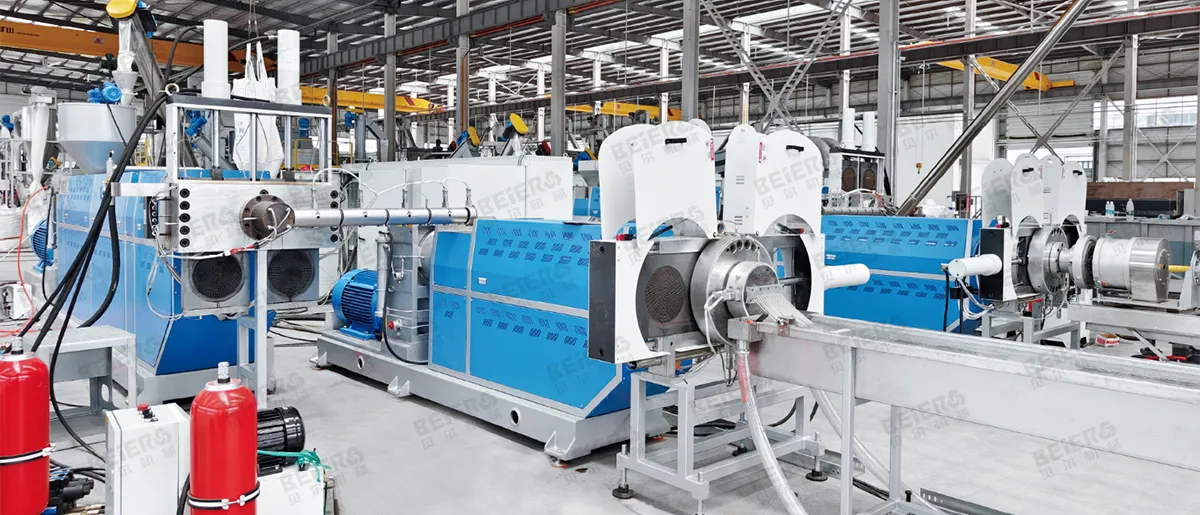

Strand Pelletizer Machine

Strand Pelletizer Machine

Strand Pelletizer Machine Application

1. Fiber Reinforcement: glass fiber, carbon fiber reinforced PP, PA, PBT, ABS, AS, PC, POM, PPS,PET, etc.
2. Polymer Blending: blending of PC/ABS, PA/ABS, PP/EPDM, PA/EPDM, PP/SBS,etc. lncorporation of Fillers: CaCO3, Talc, TiO2, carbon black filled PE, PP, or EVA etc.
3. High Concentration Color Masterbatches: PE, ABS, PS, EVA, PET, PP etc. with high concentration of pigments and other processing aids.
4. Masterbatches with Flame-Retardants: PP, PA, ABS, EVA, PBT, etc. with flame retardants and other additives.
5. Special Functional Masterbatches: Masterbatches with anti-static, antibacteria, or other special functional fillers.
6. Masterbatches for Degradable Polymers: PP, PE, PS, etc, blended with high concentration of starch and other processing aids.
7. Cable Compounds: cable sheath, cable insulation compounds of LDPE, HDPE, LLDPE, MDPE; radiation- crosslinkable compounds, optical fiber protection compounds, heat-shrinkable polymer compounds. Special Compounds: PPR pipe compounds, PE compounds for crosslinked pipes, tobacco filter compounds etc.

BEIER Smart PLC Control System

BEIER Smart PLC Control System
BEIER Smart PLC Control System

Strand Pelletizing Line Technical Parameter

Single stage pelletizing line:

Model Power Capacity L/D
SJ90 75kw 100kg/h-200kg/h 31:1
SJ100 90kw 200kg/h-280kg/h 31:1
SJ120 132kw 300kg/h-450kg/h 31:1
SJ150 185/250kw 500kg/h-900kg/h 31:1
SJ150 315Kw 900kg/h-1100kg/h 31:1

Double stage pelletizing line:

Model Power Capacity L/D
SJ90+SJ120 75kw+22kw 100kg/h-200kg/h 33:1/10:1
SJ100+SJ120 90kw+30kw 200kg/h-280kg/h 33:1/10:1
SJ120+SJ150 132kw+37kw 300kg/h-450kg/h 31:1/10:1
SJ150+SJ180 185/250kw+55kw 500kg/h-900kg/h 31:1/10:1
SJ150+SJ200 315kw+90kw 900kg/h-1100kg/h 31:1/10:1

Strand Pelletizing Machine Final Products

  • Strand Pelletizing Line
  • Strand Pelletizing Line
  • Strand Pelletizing Machine
  • Strand Pelletizing Machine

Components of Strand Pelletizing Line

Strand Pelletizing Line

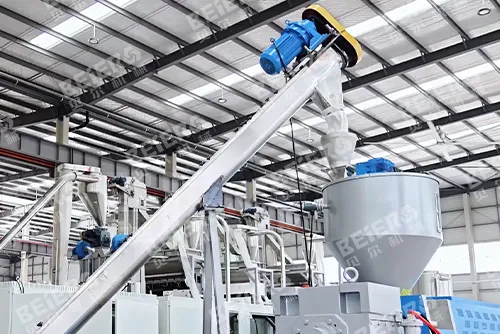

Screw Loader
Strand Pelletizing Line
Single Screw Extruder
Strand Pelletizing Line
Strand Cutter
Strand Pelletizing Line
Pelletizer
Strand Pelletizing Line

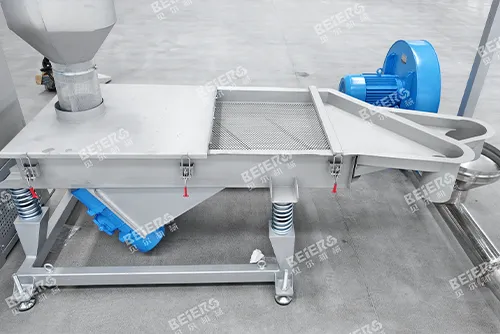

Vibrator
Strand Pelletizing Line

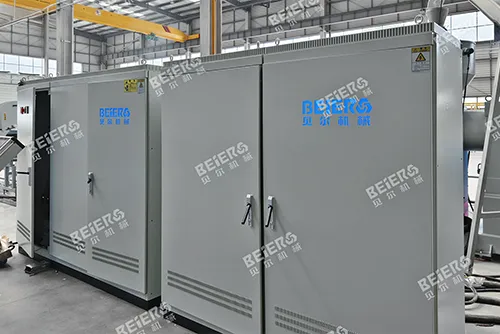

Control System
