Waste From Electrical and Electronic Equipment (WEEE) Recycling Line

The waste from electrical and electronic equipment (WEEE) recycling line is mainly used for the crushing, cleaning and recycling of the shells of waste home appliances Such as TVs, refrigerators, air conditioners and other rigid plastics. According to the characteristics of hard plastics (ABS/HIPS/PP), In terms of cost, output and production technology, BEIER provides clients with a variety of complete recycling solutions such as crushing, cleaning, and granulation.

Recyclable Materials

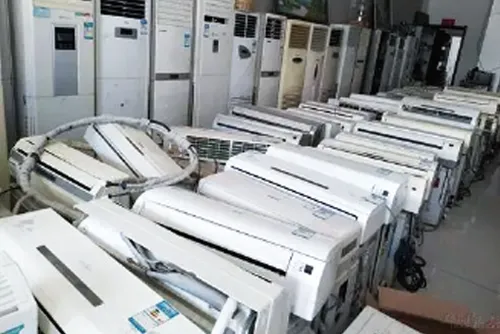

Waste Air Conditioners

Waste Washing Machine

Waste Refrigerator

Other Waste Household Appliances

Plastic Recycling Monitor Center

BEIER Smart PLC Control System

Video of Waste From Electrical and Electronic Equipment (WEEE) Recycling Line

WEEE Washing Line Technical Parameter

Capacity(kg/h)	Install power(kw)	Manpower	Recycling water(t/h)	Compressed air(m³/min)
500	110	2-3	3	3
1000	150	2-3	4	5
2000	270	3-4	6	8
3000	390	5-6	7	12
4000	530	6-7	8	16
6000	800	6-8	10	21

1000 Customers References Videos

WEEE Recycling Line Workshop

Components of WEEE Recycling Line

Bale Opener

Horizontal and vertical type. Used for open PET bottle package, which can improve working efficiency, reduce cost of labor.
Pre-Washer

Pre-washing the whole bottle, removing the majority of impurity. Better for the accurate sorting in the next step.
Label Remover

Removing label of PET bottle with high efficiency, which can reduce the pollution from non-PET material.
Horizontal Centrifugal Dryer

Horizontal type, high speed: 2300rpm. Much more efficient than the traditional vertical type.
Grinder

Special design for PET, powder rate is low and the blade is made by imported materials, which have longer using life and more convenient for blade changing.
Hot Washer

Through input high temperature and high pressure steam, add chemical Medicament, like NAOH, cleaner and etc., efficiently remove glue and oil in the surface of PET flake.
Floating Washer

Washing PET bottle & Removing impurity in bottle cap, bottle ring, label and flake.
Vibrating Packing System

Vibrating packing system is a device for packing the flakes into the double-station ton bag units. With automatically vibrates down after a certain load bearing to increase the effective packing density of the ton bag.
